Electrical Requirements for Mini Split Systems in Palm Coast
What Homeowners in Palm Coast Need to Know Before Installing a Mini Split System

Mini split air conditioning systems have become one of the most popular HVAC solutions for homeowners and businesses throughout Palm Coast, Florida. Whether you're cooling a garage, home addition, workshop, sunroom, office, or entire home, understanding the electrical requirements for a mini split system is critical for safety, efficiency, and code compliance.
At Davis Electric Services LLC, we frequently receive calls from customers who have purchased a mini split system and need a licensed electrician in Palm Coast to install the required electrical components before the HVAC contractor can complete the installation.
Does a Mini Split Require a Dedicated Circuit?
In nearly all cases, the answer is yes.
Most mini split systems require a dedicated electrical circuit directly from the electrical panel to the outdoor disconnect serving the condenser unit. The required circuit size depends on the manufacturer, model, and cooling capacity of the system.
Common mini split circuit sizes include:
- 15 Amp Dedicated Circuit
- 20 Amp Dedicated Circuit
- 30 Amp Dedicated Circuit
- 40 Amp Dedicated Circuit
- 240 Volt Mini Split Circuit
Many modern mini split systems operate on 208V or 240V power and require a double-pole breaker installed in the electrical panel.
Installing a mini split on an existing circuit can overload the wiring and may violate National Electrical Code (NEC) requirements.
Mini Split Electrical Components Required
A complete mini split electrical installation typically includes:
- Dedicated breaker in the electrical panel
- New branch circuit wiring
- Electrical conduit where required
- Outdoor AC disconnect
- Weatherproof fittings and connectors
- Proper grounding and bonding
- Electrical permit and inspection when applicable
These components work together to ensure the mini split system operates safely and reliably.
What Size Wire Does a Mini Split Need?
One of the most common questions homeowners ask is:
"What size wire do I need for my mini split?"
The answer depends on the manufacturer's specifications and electrical load requirements.
Common wiring sizes include:
- 14 AWG Copper Wire
- 12 AWG Copper Wire
- 10 AWG Copper Wire
- 8 AWG Copper Wire
Installing the wrong wire size can result in nuisance breaker trips, voltage drop issues, equipment damage, or failed inspections.
A licensed Palm Coast electrician should always verify wire sizing based on the unit's Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOCP) ratings.
Mini Split Disconnect Requirements
Florida electrical codes require a disconnecting means located within sight of the outdoor condenser unit.
A mini split disconnect allows service technicians to safely de-energize the equipment during maintenance or repairs.
Disconnect installations typically include:
- Non-fused disconnects
- Fused disconnects when required
- Weatherproof enclosures
- Proper mounting and clearances
Installing a disconnect is not only a code requirement but also an important safety measure.
Electrical Permits for Mini Split Installation in Palm Coast
Many homeowners are surprised to learn that electrical permits may be required when installing a mini split system.
Permit requirements often apply when:
- Installing a new dedicated circuit
- Modifying an electrical panel
- Adding a disconnect
- Running new wiring
Working with a licensed electrical contractor helps ensure the installation complies with local building codes and inspection requirements.
Common Mini Split Electrical Problems
We regularly troubleshoot mini split systems experiencing electrical issues such as:

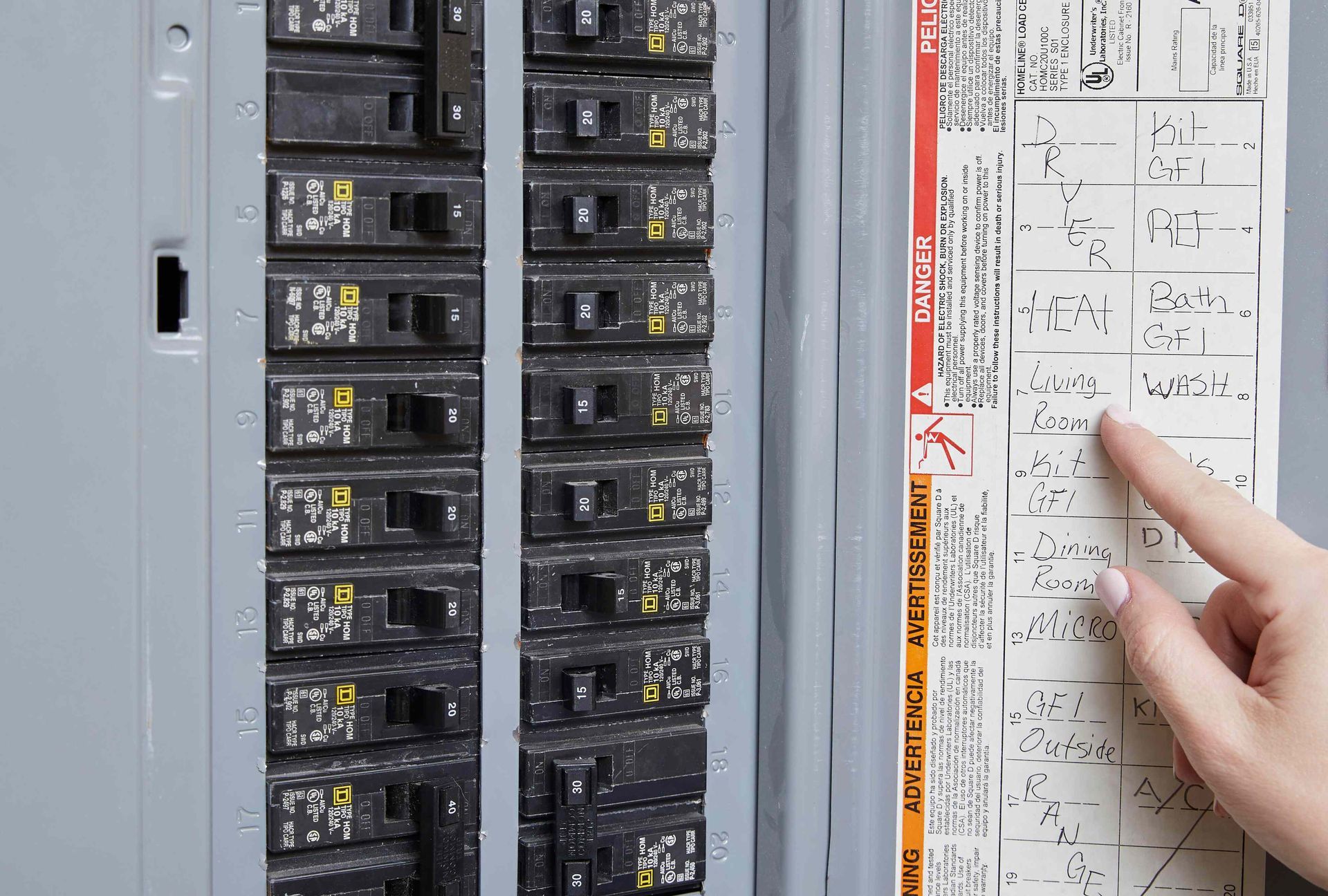

- Breakers tripping repeatedly
- Voltage drop problems
- Incorrect breaker sizing
- Undersized wiring
- Failed disconnects
- Loose electrical connections
- Improper grounding
- Power loss to outdoor condenser units
Many of these issues stem from improper installation or DIY electrical work.
Why Hire a Licensed Mini Split Electrician in Palm Coast?
Mini split systems may appear simple, but the electrical installation must be performed correctly to protect both the equipment and your property.
A licensed electrician can:
- Determine proper circuit sizing
- Verify panel capacity
- Install dedicated circuits
- Install disconnects
- Pull permits when required
- Ensure NEC compliance
- Perform voltage and load calculations
- Coordinate with HVAC contractors
Professional installation helps prevent costly repairs and warranty issues down the road.
Mini Split Electrical Installation Services in Palm Coast
Davis Electric Services LLC provides professional mini split electrical installation services throughout Palm Coast and the surrounding areas.
Our mini split electrical services include:
- Dedicated circuit installation
- Mini split disconnect installation
- Electrical panel upgrades
- Breaker replacement
- Electrical troubleshooting
- Permit coordination
- Residential mini split wiring
- Commercial mini split wiring
Whether you're installing a new ductless mini split system or upgrading an existing unit, our team can provide the electrical infrastructure needed for a safe and code-compliant installation.
Contact Davis Electric Services LLC
If you're searching for a licensed electrician for mini split installation in Palm Coast, Davis Electric Services LLC is here to help.
We provide professional electrical services for homeowners, contractors, and businesses throughout Palm Coast and Northeast Florida.
Contact us today for a free estimate on your mini split electrical installation project.
